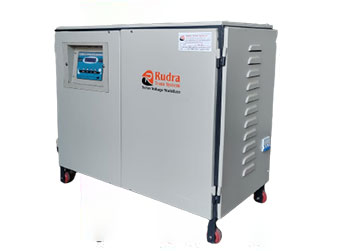

Air Cooled Servo Stabilizer

Air Cooled Servo Stabilizers offered by us are servo stabilizers that have capability to supply constant voltage to machines. This consistent supply makes them highly demanded for use in areas like lifts, hospitals, c-n-c machines, hotels as well as in other industries. Servo stabilizers also come with fully solid state controlled circuits with ± 1% regulation and have no wave-form distortion.

Features & Benefits :-

No potentiometer adjustments

All parameters can be modified using the keypad in the front panel

Set input voltage band

Set output voltage

Set output voltage sensitivity

Output over / under voltage cut-off

Input over voltage / under voltage cut-off

Over load cut-off

Trip time delay adjustments with variable setting

Manual and auto start facility

Common control card - any capacity

Fully micro control function

Generator compatibility

Both outdoor and indoor models

Accessories (Optional) :-

Ultra isolation transformer at output.

Bypass arrangement.

Phase Sequence Protection.

Line noise & Surge Suppressor.

Input Out of range protection.

EMI/RFI Filter.

Non Standard rate of correction.

Technical Specifications

No	Capacity	7.5 KVA to 75 KVA
1	Input voltage range	340-480VAC, 300-500VAC or AS per Customer Requirement
2	Output Voltage	380V/400V/415V ±1% (As per Customer requirement)
3	Rate Of Correction	Up to 75 V/sec
4	Effect of Power Factor	Nil
5	Waveform Distortion	Nil
6	Response Time	10 msec
7	Duty Cycle	100% continuous
8	Line Frequency	47 to 63 HZ
9	Controlled Type	Digital Micro controlled based
10	Efficiency	>98%
11	Operating Temperature	0-50° C
12	Nature Of Cooling	Air Cooled
13	Cabinet Color	Siemens Grey
14	Servo Motor Drive	AC Synchronous Type
15	Protections	1. Input High/Low Voltage Cutoff 2. Output high/Low voltage cutoff 3. Overload Cutoff Protection 4. Single Phasing Preventer 5. Short Circuit Protection
