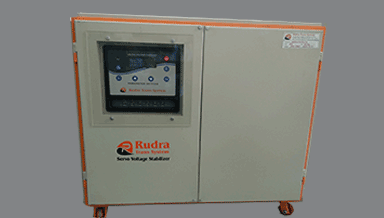

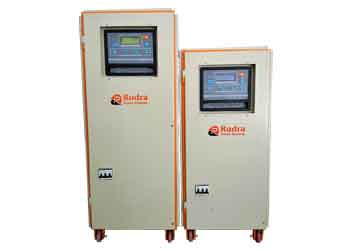

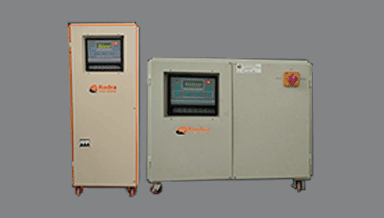

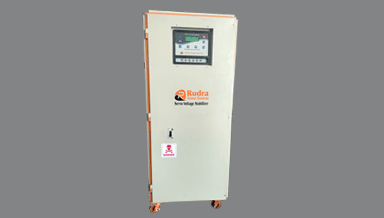

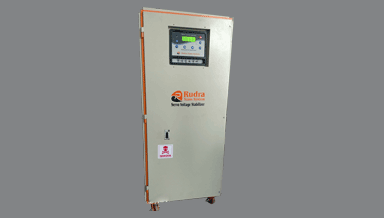

Air Cooled Servo Stabilizer

Air Cooled Servo Stabilizers offered by us are servo stabilizers that have capability to supply constant voltage to machines. This consistent supply makes them highly demanded for use in areas like lifts, hospitals, c-n-c machines, hotels as well as in other industries. Servo stabilizers also come with fully solid state controlled circuits with ± 1% regulation and have no wave-form distortion.

Features & Benefits :-

No potentiometer adjustments

All parameters can be modified using the keypad in the front panel

Set input voltage band

Set output voltage

Set output voltage sensitivity

Output over / under voltage cut-off

Input over voltage / under voltage cut-off

Over load cut-off

Trip time delay adjustments with variable setting

Manual and auto start facility

Common control card - any capacity

Fully micro control function

Generator compatibility

Both outdoor and indoor models

Accessories (Optional) :-

Ultra isolation transformer at output.

Bypass arrangement.

Phase Sequence Protection.

Line noise & Surge Suppressor.

Input Out of range protection.

EMI/RFI Filter.

Non Standard rate of correction.

Technical Specifications

No	Capacity	7.5 KVA to 75 KVA
1	Input voltage range	340-480VAC, 300-500VAC or AS per Customer Requirement
2	Output Voltage	380V/400V/415V ±1% (As per Customer requirement)
3	Rate Of Correction	Up to 75 V/sec
4	Effect of Power Factor	Nil
5	Waveform Distortion	Nil
6	Response Time	10 msec
7	Duty Cycle	100% continuous
8	Line Frequency	47 to 63 HZ
9	Controlled Type	Digital Micro controlled based
10	Efficiency	>98%
11	Operating Temperature	0-50° C
12	Nature Of Cooling	Air Cooled
13	Cabinet Color	Siemens Grey
14	Servo Motor Drive	AC Synchronous Type
15	Protections	1. Input High/Low Voltage Cutoff 2. Output high/Low voltage cutoff 3. Overload Cutoff Protection 4. Single Phasing Preventer 5. Short Circuit Protection

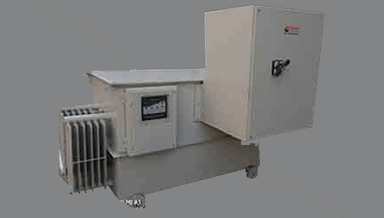

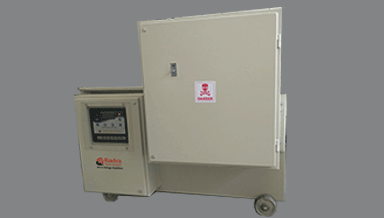

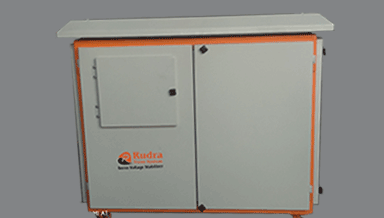

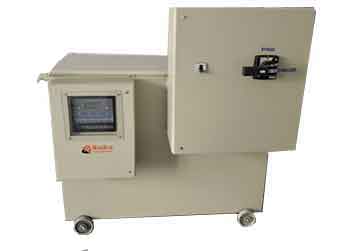

Oil Cooled Servo Stabilizers

We are supplying and exporting the most advanced range of Oil Cooled Servo Voltage Stabilizer. Made with the latest equipment and technologies, it has come to be recognized as the most productive as well as the efficient machine in the global market.

Constructed with the use of finest materials, the Oil Cooled Servo Voltage Stabilizer is exceptionally durable. The rigid construction endows it both the strength and elegance to be stand out. With an eye to matching all the possible needs of various industries, the stabilizer comes in several models. Customized solutions are delivered on specific demands as well. It has been developed to enhance productivity with optimum ease.

ACCESSORIES/ OPTIONAL :-

Ultra isolation transformer at output

Bypass arrangement

Phase Sequence Protection

Line noise & Surge Suppressor

Input Out of range Protection.

EMI/RFI Filter.

Non Standard rate of correction.

TYPICAL APPLICATIONS :-

CNC/VMC Machines

Air Conditions Plants

BTS/Mobile Towers

Pharmaceutical, Cement Plant.

Plastics Industries. etc.

Residential, Mall, Theaters.

Hospitals, Resorts, etc

Printing Industries

Cold Storage

ADVANTAGES OF SERVO STABILIZER :-

Reduction in Electrical breakdown & Improves life of Equipments.

Enhance Power Factor by Voltage regulation.

Increase productivity rate.

TECHNICAL SPECIFICATIONS

Capacity in KVA :-	30 KVA to 2000 KVA Oil cooled
Input Range :-	340-480VAC | 300-500VAC Or As Per Customer Requirement
Output Voltage :-	380V/400V/415V/415V(As per Customer requirement)
Rate of Correction :-	up to 100V/sec
Response Time :-	10 msec
Waveform Distortion :-	nil
Controlled Type :-	Digital Micro Controlled based
Effect of Power factor :-	Nil
Line frequency :-	47 to 63 HZ
Duty Cycle :-	100% Continuous
Protections :-	input High/low Voltage cutoff Output High/Low Voltage cutoff, Overload Cut Off Protection Single phasing preventer Short circuit protection

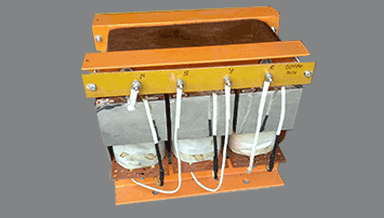

Ultra Isolation Transformer

Noise Cut-off (Ultra Isolation) Transformer cuts off noise, so your machine can perform with musical perfection.

Applications :-

All the types of electrical noises, predominantly common mode noises can be eliminated by Ultra Isolation Transformers. Since it isolates primary and secondary or separates neutral to ground bond on the secondary side, can be used to create separately derived source to combat current loops. The Ultra Isolation Transformers are available in different levels of noise attenuation capabilities. The most commonly used are 100 & 120 dB. The coupling capacitance between primary and secondary is direct 1:1 relationship with dB levels. Some of the graphs herewith indicate different types of electrical noises observed in typical Engineering Industries & successfully eliminated.

damage due to circulating noise interference within them.

To Protect against strong lightening, impulse noise, bus short-circuit, accidental discharge of capacitors

When multiple Noise Cut-off transformers are used, the suppression effects increase in proportion. Therefore, the effects of cascading Noise Cut-off Transformers is remarkable.

Accessories (Optional) :-

Protect Computers, CNC Machines and Telecommunication equipments from damage due to electrical noises, spikes etc

If ground potential of system units are different from each other and are exposed to the effects of instability at high frequencies.

If ground of the equipment cannot be earthed.

To shield large number of electronic equipments which individually are producing different types of electrical noise at a common busbar typically CNC machines, Drives, Hardening equipment etc. The use of NCT, being bidirectional, prevents

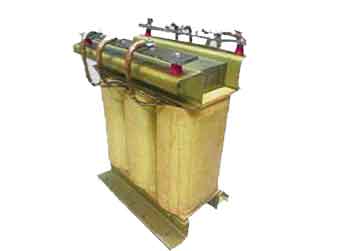

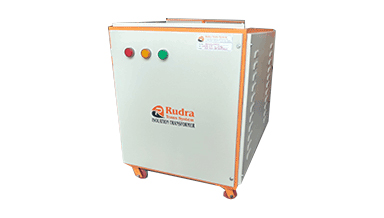

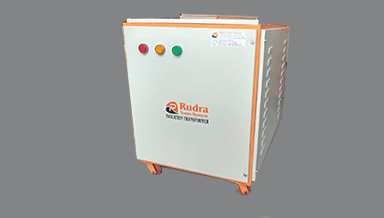

Isolation Transformer

An Isolation Transformer is a device which is use to decouple two circuit, the load to the Isolation Transformer and to the Input supply, Isolation Transformer suppress electrical noise which occurs in transmission line. An Isolation Transformer blocks transmission of DC signal from one Circuit to other and allow ac signal to transmit. It also prevent interference cost by ground looping. Isolation Transformers are constructed with two isolated Faraday shields between the primary and secondary winding. The use of two shields in the construction of the isolation transformer diverts high frequency noise, which would they occur The two shields provide more effective isolation of the primary and secondary circuits and also isolation to their grounds.

Advantages of line Isolation Transformers :-

Very high noise attenuation capacity

Reduced coupling capacitance.

Lesser leakage current

Suitable for higher harmonic loads.

Core will not saturate even if the applied voltage is high.

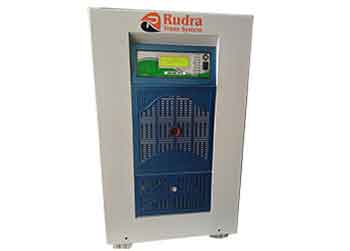

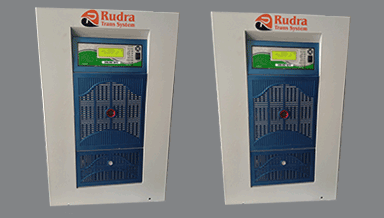

Online UPS

Rudra Trans System offers a wide range of Single and Three Phase Online UPS System. These systems are manufactured in compliance with international quality standards using high grade raw material. Our systems protect your investments in technology equipment from commercial power: spikes, surges, electrical noise, load fluctuation and outage. These are extensively used in varied commercial and industrial applications, the striking features of our range includes excellent regulation, smooth and linear output, overload capacity, environment friendly and low running cost. The range is tested on various quality parameters and is also customized as required by the client.

Features :-

On-Line Technology with 93% efficiency

LCD Display

More active power available

Automatic battery check

Maintainability

Network compatibility

Low noise for use in offices

Eco friendly Product

True sine wave output with less than 3% THD

Many kinds of system protection and alarming function

Applications :-

Major Power Back up source in corporate offices as well as call centres.

Banks & ATMs.

Defence & Para Military operations complex.

Life saving medical equipments and diagnostic labs.

Photography and colour labs.Emergency Devices (Lights/Alarms)

Fire Devices.

Telecommunication Devices.

Industrial Applications.

Vital real time & process control equipment in industries.

Aviation and broadcasting.

Computer & Microprocessor based industrial equipment

Computerized Sequence Embroidery Machines

Diamond laser cutting machine

Sophisticated medical equipment such as FAX, EPABX etc.

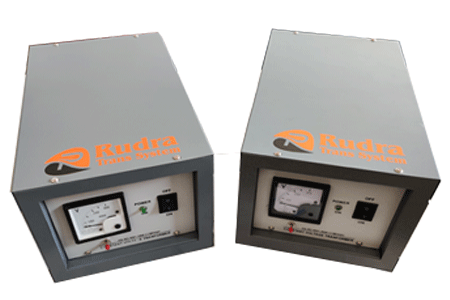

Constant Voltage Transformer

In a RUDRA CVT, the AC mains power the input winding which is widely separated physically from the isolated output winding. The input winding normally runs at very moderate Flux Linkage levels. The output winding exhibits an intrinsic energy storage characteristic and this energy storage operates in conjunction with mains capacitor to produce self-generated AC flux field which is indirectly excited form the input winding.

RUDRA Constant Voltage Transformers ensure total protection of your sensitive electronic equipment by allowing only stabilized and pure sine wave power.

Fields of Application:-

Embroidery machines

Signaling instruments

Epabx systems

Computers & peripherals

Transmitters

Scientific instruments

Laboratory equipments

Photo flash equipments

Recommendations :-

Keep magnetic storage and display devices like Diskettes, Spools, Monitors etc. away from the CVT.

Switch on the CVT before switching ON the attached peripherals and while switching off, switch OFF attached peripherals first and then the CVT.

Avoid using the CVT for high inductive loads. * Check frequency before using the CVT with a generator. Recommended frequency: 50+ 1Hz

Switch OFF the CVT when not in use.

TECHNICAL SPECIFICATIONS

Phase	Single Phase
Input Voltage	180V-260V (other choices on request)
Line Frequency	50Hz
Output Voltage	220/230 + 1% & 110+ %
Output Step load response	2 cycle (30 to 40 millisecond)
Efficiency	90% (approx) under full load conditions
Output Waveform	Sinewave
Waveform Distortion	5 % (approx) under full load conditions
Load Power Factor	0.75% lag to 0.9% lead
Ambient temperature	5 C to 50 C
Transformer Type	Ferro-Resonant
Capacity	50VA, 100VA, 150VA, 250VA, up-to 5KVA

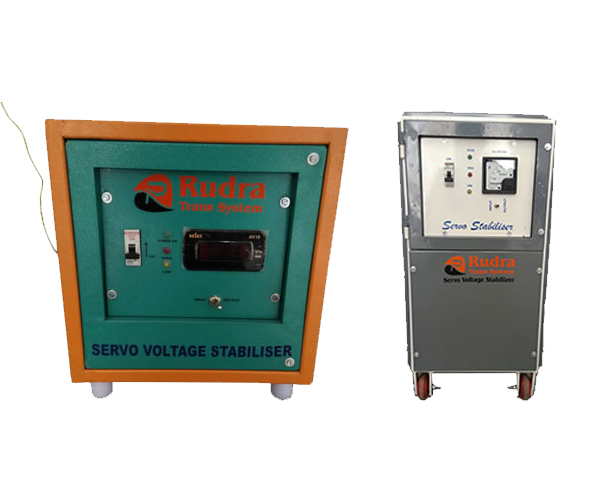

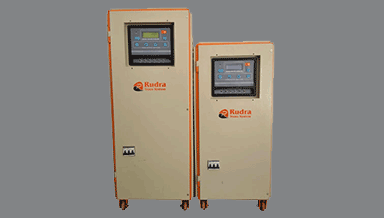

Single Phase Stabilizer

Voltage Stabilizers are classified into single phase and three phase servo voltage stabilizers. However, the major components of a Servo Voltage Stabilizer include a motorized variable transformer, controller, and a buck-boost transformer. With the high-quality material used in the manufacturing process, we are marked as the Best Single Phase Voltage Stabilizer Manufacturer in Gujarat.

Also, with the solid-state electronic circuitry and the use of components like MCB and MCCB are used for the protection purpose against short circuit and overloading. We the Single Phase Servo Stabilizer Manufacturer in Gujarat uses the synchronizing motor in the manufacturing process to achieve the effective voltage correction to provide a stabled output. If you are looking for the prominent manufacturers or highly efficient Servo Stabilizers, then you have landed in the perfect place.

We are well-known Single Phase Servo Stabilizer Manufacturer in Gujarat India which provides various electronic devices and aims to meet or fulfill the industrial as well as residential needs. The Servo Voltage Stabilizer is designed with the principle of providing a constant output voltage in order to ensure the long life of the various electronic applications or electric equipment. We aim to provide the devices for the smooth performance of electric appliances, lower maintenance, and high productivity

Applications:-

Offset Printing Machines

CNC Machines

Signaling Radars

General laboratory equipments

Hospitals

Industrial & lighting loads

Telecommunication exchanges

Air conditioning plants

Escalators & Elevators

Petrol pumps

Hotels

Paper Cutting Machines

Textile Machinery

Printing Machines

TECHNICAL SPECIFICATIONS

Phase	Single Phase
Input Voltage	170vac-270vac, 160V-280V, 140V- 280V AC
Output Voltage	230V+- 1% AC adjustable
KVA Rating, Capacity	1 to 25 KVA
Frequency	50Hz±1%
Power Factor	0.8-unity
Rate of Correction	Up to 50v/Sec
Efficiency	More than 95%
Distortion	Nil
Cooling	Natural Air cooled
Temperature	0-48˚C
Wave Form	Sinusoidal
Duty Cycle	100%
Indications	Power On Input High Input Low
Protections	Short Circuit Over Load Hi/Lo Cut Out
